Switching to GL guitars featuring the passive treble and bass PTB circuits and magnetic field design MFD pickups required a change in habits. GL Tribute LegacyåÊTrans Blue The Legacy comes equipped with 3 Patented USA Made GL vintage style Alnico V single coil pickups controlled by the Patented GL Passive TrebleBass PTB system which includes a single Volume Control combined with separate Treble and Bass Controls and. More highs more lows and more volume. This post is to save others the blood sweat and tears I went through to finally be happy. The volume is treble bled to effectively roll off highs. Our Shotvalve Passive Treble Bass PTB wiring harness is based off of the G. 5-position pickup selector volume PTB system passive treblebass Other.

This circuit sometimes called PTB for passive treble and bass combines standard treble-bleed Volume and Tone knobs with a Bass-Cut control.

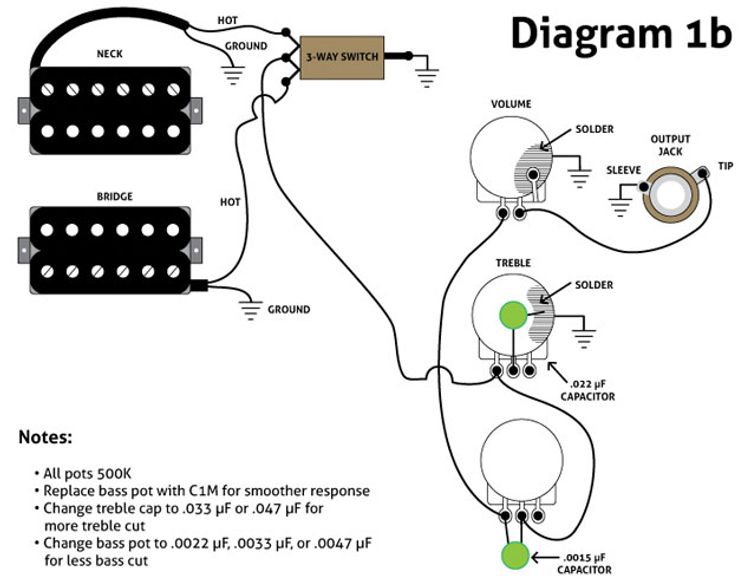

Used normal wear The Legacy comes equipped with 3 Patented USA Made GL vintage style Alnico V single coil pickups controlled by the Patented GL Passive TrebleBass PTB system which includes a single Volume Control combined with separate Treble and Bass Controls and a 5 Position Pickup Selector Switch. Aside from the sound getting really thin the 1 meg pot had no grease in it and would spin with the slightest touch. Anyone got a wiring diagram for GL legacy-any model with the PTB systempassive treble bass. I tried it on a regular strat with lace sensors. GL Tribute Legacy Trans Blue. The original GL scheme calls for alternate pot values but the project here Diagram 1b shows my adaptation for three-knob humbucker guitars using the extant k potsJun 11 Im looking at some of the GL PTB wiring diagrams and Im confused becasue some of them look different and have toggle switches and the pickup selector is wired differently.

Bass Cut And The G L Ptb System Guitarnutz 2

G&l passive treblebass (ptb) system. This post is to save others the blood sweat and tears I went through to finally be happy. Hello Select your address Musical Instruments Stage Studio Hello Sign in. Account Lists Returns Orders.

Musical Instruments Stage Studio. All are welcome from seasoned pros to absolute beginners. This circuit sometimes called PTB for passive treble and bass combines standard treble-bleed Volume and Tone knobs with a Bass-Cut control.

GL Tribute Series S-500 features. Put simply its our Custom interpretation of the GL Legacy PTB System - thats Passive Tone Bass. G.

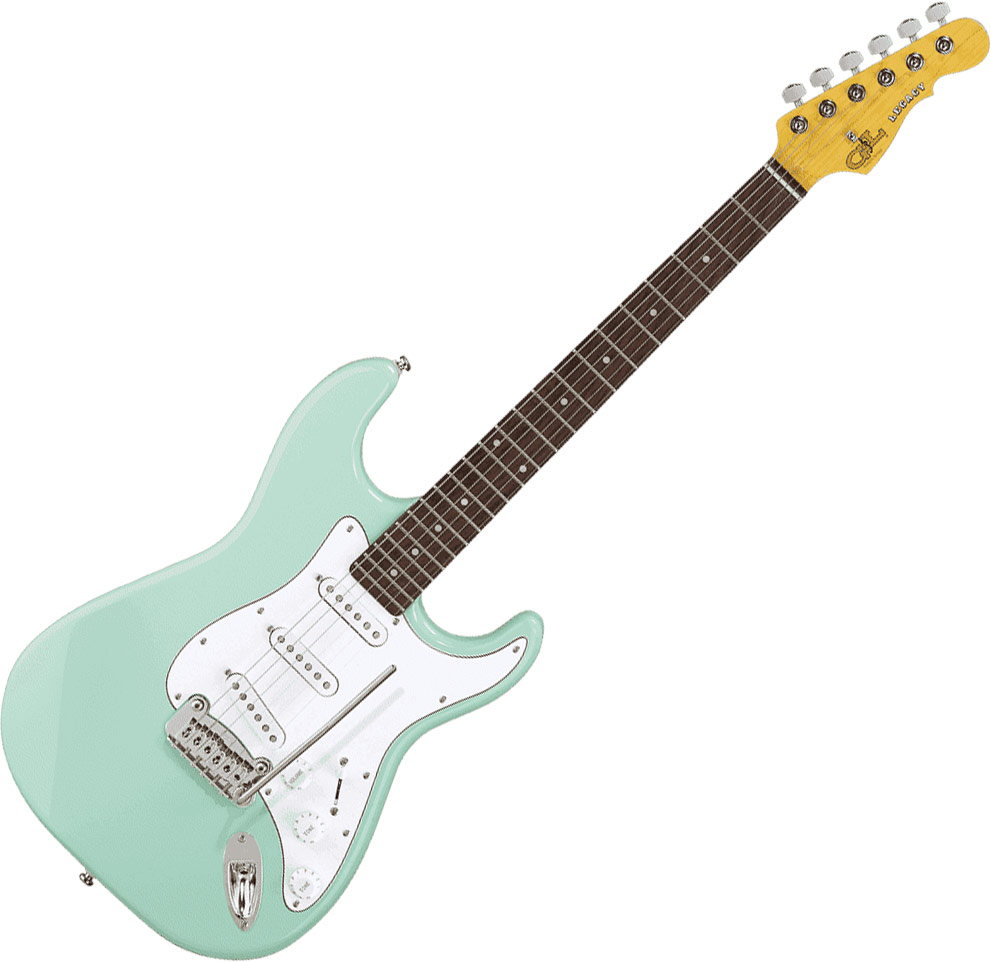

G. This GL electric guitar fits all styles with its cool vibe and outstanding tone. Hardware includes a Patented GL Dual Fulcrum Vibrato which pivots on two hardened posts for perfect return to pitch and maximum sustain.

The volume is treble bled to effectively roll off highs. Best Sellers Prime New Releases Deals Store. The GL Legacy blends contemporary refinements from the Leo Fender-designed S-500 and Comanche models with classic Alnico V pickups.

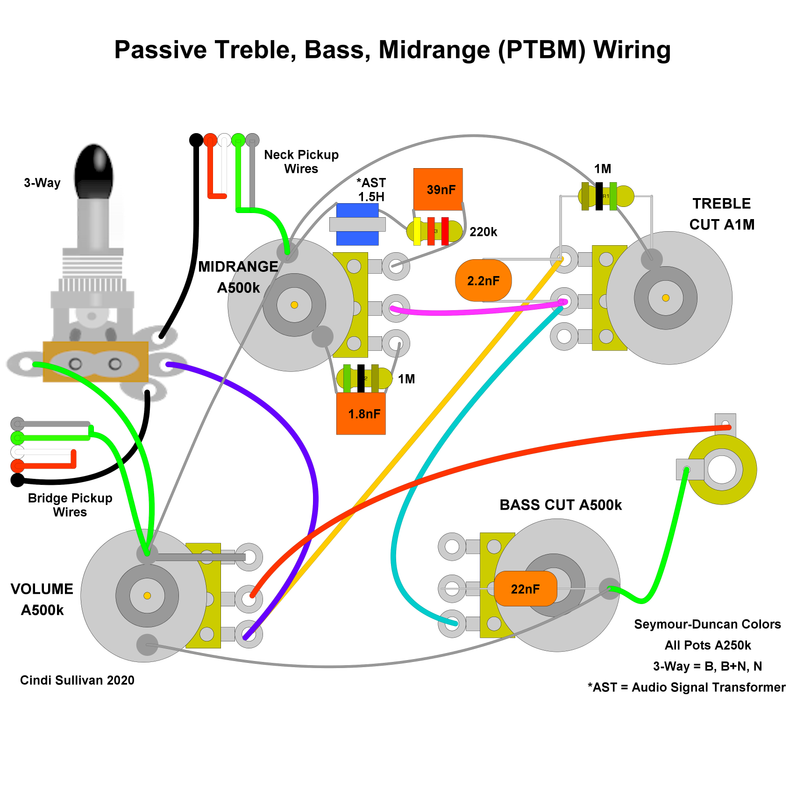

This 3 control Bass harness is configured as a PTBM design for Bass. The Parchment Pearloid Pickguard with Parchment Covers and Tip is Copper Clad for EMF protection and decked out with Bootstrap Oatmeal Stout Pickups Bourns and Alpha Pots and true authentic 1950s Bumblebee Paper-In-Oil PIO Tone CapacitorsThis pickguard possesses a. The GL S500 debuted in 1982 as Leos own evolution of the traditional double-cutaway bolt-on axe delivering innovations including the Dual-Fulcrum vibrato and Magnetic Field Design single-coil pickups each designed by Leo Fender himself.

. The harness uses a bass cut and treble cut together to shape your guitar tone.

Ptb Wiring Mods Fender Stratocaster Guitar Forum

Bass Cut And The G L Ptb System Guitarnutz 2

Three Must Try Guitar Wiring Mods Premier Guitar

Two Band Ptb Tone Control Useful Easy Cheap Awesome Tonefiend Com

G L Ptb Circut For Bass Talkbass Com

Two Band Ptb Tone Control Useful Easy Cheap Awesome Tonefiend Com

Three Must Try Guitar Wiring Mods Premier Guitar

Two Band Ptb Tone Control Useful Easy Cheap Awesome Tonefiend Com

Two Band Ptb Tone Control Useful Easy Cheap Awesome Tonefiend Com

Bass Cut And The G L Ptb System Guitarnutz 2

Prewired Stratocaster Treble Bass Control Arty S Custom Guitars

Rothstein Guitars Jazzmaster Wiring Series Parallel

Two Band Ptb Tone Control Useful Easy Cheap Awesome Tonefiend Com

Fender Stratocaster Strat G L Legacy Wiring Upgrade Kit Ptb System Add Neck Ebay

Revised Passive Treble Bass Midrange Ptb M For Hh Guitarnutz 2

The G L Discussion Page View Topic Pickup Identification

Fender Stratocaster Strat G L Legacy Wiring Loom Upgrade Kit Ptb System Neck Ebay

Surfguitar101 Com Forums Neck On Switch For Strat Recommended

Ptb Passive Treble And Bass Upgrade Wiring Harness For Fender Stratocaster

Prewired Kit Passive Treble Bass Control Kit Custom Guitars Guitar

Trying Out A Ptb Tone Circuit Need Some Help Telecaster Guitar Forum

Strato Con Ptb Passive Treble Bass Construccion Y Reparacion De Instrumentos Musiquiatra

Rothstein Guitars Jazzmaster Wiring Series Parallel

1

Three Must Try Guitar Wiring Mods Premier Guitar

Bass Cut And The G L Ptb System Guitarnutz 2

G L Tribute Legacy Surf Green Solid Body Electric Guitar Green

New Bright Clear Sound Without Change Of Pickups Electromatics The Gretsch Pages

Treble And Bass Planet Z

Pin On Prewired Kit Prewired Harness Fender And Gibson

Passive L Series Circuits

The G L Discussion Page View Topic G L Legacy Tribute Ptb Restoration And Mods W Sound

Stratocaster Strat Ptb Passive Treble Bass Guitar Wiring Harness Ebay

Drew Up A Passive Treble Bass Wiring Diagram For My New Build And Thought It Looked Nice Enough To Share R Luthier

Wiring Help With G L Mfd L Series Pickups Preamp In A Jaguar Bass Talkbass Com

G L Ptb Passive Treble Bass Tone Vs Treble Bleed Circuit Fender Stratocaster Guitar Forum

Fender Strat Refret G L Ptb Passive Treble Bass Mod Youtube

G L Tribute Legacy Surf Green

Revised Passive Treble Bass Midrange Ptb M For Hh Guitarnutz 2

Legacy G L Musical Instruments

G L Tribute Legacy Natural Gloss Keymusic

Rothstein Guitars Serious Tone For The Serious Player

Yjm Fury G L Vtb Wiring Pickup Cover Compatibility Seymour Duncan User Group Forums

G L Tribute Legacy Gloss Black Muziker

G L Tribute S 500 Irish Ale Keymusic

Passive Treble Bass Midrange Wiring Verification Guitarnutz 2

Legacy Special G L Musical Instruments

G L Tribute Legacy Surf Green

1

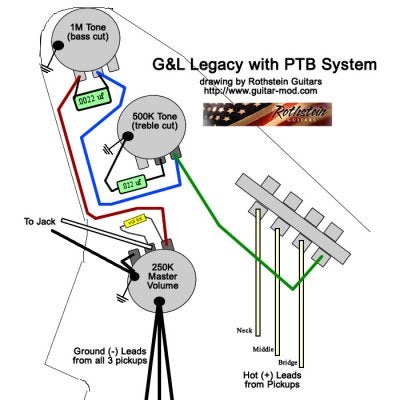

Anyone got a wiring diagram for GL legacy-any model with the PTB systempassive treble bass.
